3D Printing Clear and Tinted Prototypes

Print with transparent Polyjet photopolymers to simulate a clear plastic part that combines high dimensional stability with surface smoothness.

Overview

Using a combination of clarity, dimensional stability, and surface smoothness, VeroClear (Transparent) Polyjet printing material allows designers and engineers to produce clear and tinted products ranging from eyewear to medical devices. Using material from the VeroClear (RGD810 and RGD720) family, easily simulate clear plastics that combine high dimensional stability with surface smoothness. Transparent material can also be rigid and combined with black materials to create artistic patterns and a variety of translucent shades. Using 3D printing systems such as the Objet Connex3, you can incorporate transparent, opaque, rubber-like, or simulated polypropylene materials into one model.

GET STARTED WITH SERVICES



Material Performance

Transparent PolyJet material lets you prototype clear and tinted products from eyewear and light covers to medical devices.

Material Properties Izod notch testing

IZOD IMPACT,
NOTCHED

20-30 J/m

Material Properties Flexural Strength

Flexural
Strength

75-110 MPa XZ axis

Material Properties Tensile Strength

Tensile
Strength

50-65 MPa XZ axis

Material Highlights

Characteristics

  • Rigid
  • Transparent
  • Dimensionally stable

Options

  • VeroClear is a rigid, colourless material featuring great dimensional stability. Ideal for simulating PMMA

Uses

  • Form and fit testing of see-through parts like glass consumer products, eyewear, light covers and cases
  • Visualization of liquid flow
  • Medical applications
  • Artistic and exhibition modeling

Advantages

  • Versatility
  • Fine detail

Performance Scale

Material Colours



Powered By Polyjet

Renowned for its outstanding realism and breathtaking aesthetics, Polyjet 3D printing offers sharp precision, smooth surfaces, and ultra-fine details.

LEARN MORE ABOUT Polyjet

Technical Specifications

VeroClear (RGD810) Properties ASTM Units Metric Units Imperial
Tensile Strength D-638-03 MPa 50-65  psi 7250-9450
Elongation at Break D-638-05 % 10-25  %  10-25
Modulus of Elasticity  D-638-04  MPa 2000-3000 psi 290,000-435,000
Flexural Strength  D-790-03  MPa  75-110 psi 11000-16000
Flexural Modulus  D-790-04  MPa  2200-3200 psi 320,000-465,000
HDT, °C @ 0.45MPa  D-648-06  °C  45-50 °F 113-122
HDT, °C @ 1.82MPa  D-648-07  °C  45-50 °F 113-122
IZOD Notched Impact  D-256-06 J/m  20-30 ft lb/inch 0.375-0.562
Water Absorption  D-570-98 24hr  %  1.1-1.5 % 1.1-1.5
Tg DMA, E» °C 52-54 °F 126-129
Shore Hardness (D) Scale D Scale D 83-86 Scale D 83-86
Rockwell Hardness Scale M Scale M 73-76 Scale M 73-76
Polymerized Density ASTM D792 g/cm3 1.18-1.19
Ash Content USP281 % 0.02-0.06 % 0.02-0.06
VeroClear (RGD720) Properties ASTM Units Metric Units Imperial
Tensile Strength D-638-03 MPa 50-65  psi 7250-9450
Elongation at Break D-638-05 % 15-25  %  15-25
Modulus of Elasticity  D-638-04  MPa 2000-3000 psi 290,000-435,000
Flexural Strength  D-790-03  MPa  80-110 psi 12000-16000
Flexural Modulus  D-790-04  MPa  2700-3300 psi 390,000-480,000
HDT, °C @ 0.45MPa  D-648-06  °C  45-50 °F 113-122
HDT, °C @ 1.82MPa  D-648-07  °C  45-50 °F 113-122
IZOD Notched Impact  D-256-06 J/m  20-30 ft lb/inch 0.375-0.562
Water Absorption  D-570-98 24hr  %  1.5-2.2 % 1.5-2.2
Tg DMA, E» °C 48-50 °F 118-122
Shore Hardness (D) Scale D Scale D 83-86 Scale D 83-86
Rockwell Hardness Scale M Scale M 73-76 Scale M 73-76
Polymerized Density ASTM D792 g/cm3 1.18-1.19
Ash Content USP281 % 0.01-0.02 % 0.01-0.02

Applications

System Compatibility

Stratasys J750

Connex3

Objet Eden260VS

objet 30

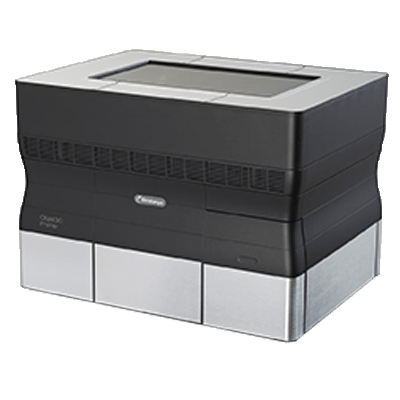

Objet30 Series

Objet1000 Plus
