Form Wash & Form Cure (2nd Generation)

Simple & easy to use post-processing workflow for 3D printed parts in less than 15 minutes

Form Wash and Form Cure (2nd generation) are Formlabs' automated and mess-free post-processing systems are designed to reduce labour time and deliver consistent part quality with every print job. They're part of the Formlabs' reliable SLA 3D printing ecosystem. Take advantage of the additive manufacturing perks and benefits with these finishing solutions.

Wash & Cure. Perfectly clean. Flawless parts.

Form Wash and Form Cure are automated post-processing systems that deliver flawless parts while you concentrate on other projects.

request a 3D printed sample

Form Wash Specs Form Cure Specs


Over 100,000,000 Parts Printed with Formlabs Technology

Request a Sample


Production Control icon

Form Wash

Automated Part Rinsing

The Form Wash system washes your parts using a timer so you can set it and forget it. You can go glove-free since the parts go directly from the Form 3+ printer to the Form Wash without any intermediate steps.

Formlabs-FormWash

Proto3000_Icon_Efficiency

Form Wash in Numbers

Set the time and Wash away

Set the appropriate time and let Form Wash get to work.

15
MINUTES
Approximate wash time when using fresh isopropyl alcohol (IPA)

8.6
LITERS
IPA volume for removable wash bucket

70
PRINTS
Amount of prints per IPA refill in regular use

Thermal Homogeneity icon

Smart & Automated Workflow.

Parts are precisely agitated in IPA to get every nook and cranny perfectly clean. Form Wash automatically lifts them from the IPA when the washing cycle ends to avoid over-soaking and warped prints. Once they’re air-dried, they’re ready for curing.



Included components with Form Wash

formlabs-hydrometer

HYDROMETER

Form Wash has a custom hydrometer tool to help you check the IPA saturation.



formlabs-storage-tools

STORAGE

This storage accessory is placed behind the wash bucket to keep finishing tools clean and organized.

formlabs-siphon

SIPHON PUMP

Form Wash comes with a siphon pump for an easy IPA transfer into and out of the wash bucket.

Reinvent the Way You Manufacture.

De-risk supply chains, improve part performance and personalize products for your customers. Welcome to AM 2.0

Connect with Our experts to learn how

Proto3000_Icon_Jigs Fixtures

Tougher, Stronger 3D Printed Parts with FORM CURE 2nd Gen

Form Cure (2nd Generation) precisely combines heat and 405 nm light to deliver tough, strong prints with unprecedented speed and consistency. Now you can post-cure Form 4/B prints in as little as 60 seconds, with 4x more UV power, 5x faster heat-up times, and a 1.3x larger chamber. To begin curing, just select a validated preset for Formlabs 45+ materials. Advanced users can customize time and temperature to fit their specific needs.

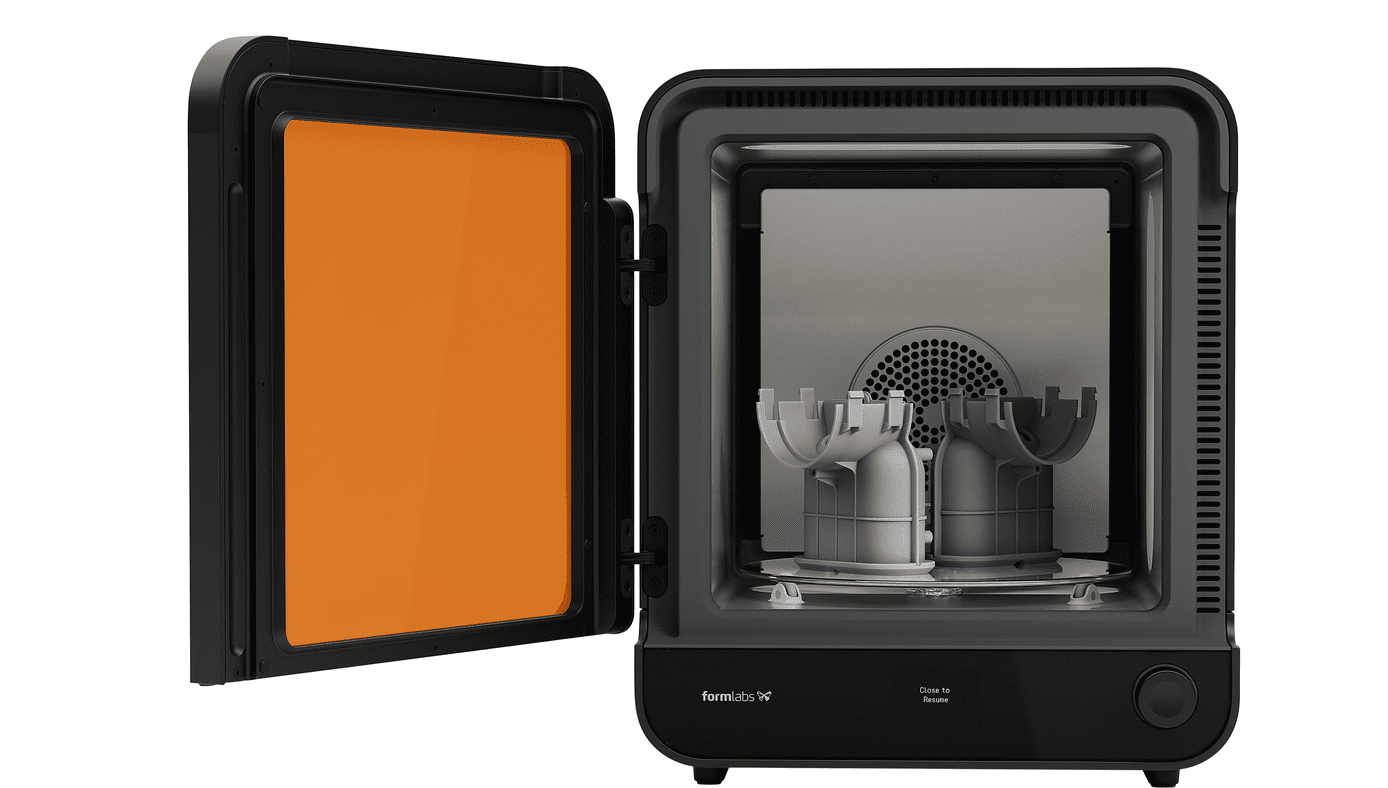

Image of Formlabs Form Cure 2 system

48 LED ARRAY
Form Cure 2nd. Gen is equipped with 48 LED arrays and a convective heating system to ensure uniform light and heat exposure. It delivers 14.5 mW/cm² irradiance and a maximum temperature of 100 °C.

LARGER CHAMBER
Designed to fit any part on Form 4 or Form 4L, with a 235 mm turntable for Form Cure and a 395 mm turntable for Form Cure L.

PRE-SET CURING CYCLES
Formlabs’ Form Cure 2 comes with pre-programmed curing cycles, an easily cleaned glass turntable, and a side-hinged door to allow easy access within a compact footprint.
FROM PRINT TO CURING

Proto3000_Icon_Long Chain Chemistry

The importance of Post-Curing

Post-curing improves your part on a molecular level. 405 nm light initiates a reaction that cross-links the individual polymers, creating an interconnected, isotropic, and 100% dense final part.

  • Higher strength and stiffness
  • Higher surface hardness
  • Higher toughness
  • Higher temperature resistance
  • Better creep resistance

Maximize Material Properties

Parts 3D printed with Formlabs® Standard Resins can be cured at default time and temperature. For all other materials, use recommended settings for optimum performance.

Form Wash Specifications

Printer Compatibility
Printer Compatibility
Form 3+, Form 3B, Form 2
Dimensions
Dimensions
26.2 x 29.3 x 34.0 cm
10.3 x 11.5 x 13.4 in
Height when open: 64 cm (25.2 in)
Weight
Weight
6.7 kg / 14.5 lbs
Bucket Volume
Bucket Volume
8.6 L
Maximum Part Size
Maximum Part Size
14.5 × 14.5 × 17.5 cm
5.7 x 5.7 x 6.9 in
Suggested Operating Environment
Suggested Operating Environment
Suggested 18 - 28°C
Suggested 64 - 82°F
Agitation Method
Agitation Method
Magnetically coupled impeller
Included Accessories
Included Accessories
  • Wash Bucket
  • Wash Basket
  • Hydrometer
  • Siphon Pump
  • Flexible Scraper
  • Scraper
  • Tweezers
  • Flush Cutters
Power Requirements
Power Requirements
90–240 V
2.0 A 50/60 Hz
50 W
Compatible Solvents
Compatible Solvents
IPA, TPM, Water

Form Cure 2nd Generation
Technical Specifications

Printer Compatibility
Printer Compatibility
Form Cure (1st gen):
  • Form 3
  • Form 3L
  • Form 3B
  • Form 3BL
  • Form 2

  • Form Cure (2nd. Gen):
  • Form 4
  • Form 4B
  • Form 3/+
  • Form 3/+BL
  • Form 2
  • Outer Dimensions
    Outer Dimensions
    337 × 404 × 372 mm | 13.3 × 14.0 × 15.9 in)
    Weight
    Weight
    12.1 kg / 26.7 lbs
    Turntable Diameter
    Turntable Diameter
    235 mm (9.25 in)
    Maximum Part Height
    Maximum Part Height
    245 mm
    Suggested Operating Temperatures
    Suggested Operating Temperatures
    Time to 60° C 60s @230V 80s @120V
    Time to 80° C 150s @230V 180s @120V
    Time to 100° C 250s @230V 270s @120V
    Internal Chamber Volume
    Internal Chamber Volume
    250 × 250 × 265 mm
    UV irradiance at the part
    UV irradiance at the part
    14.5 mW/cm²
    LED
    LED
    LED Power: 150 W
    LED Radiant Power: 50 W
    Chamber UV uniformity: +/- 5%
    Light Source: 48 multi-directional LEDs
    LED Peak wavelength: 405 nm
    Power Requirements
    Power Requirements
    Input (NA) 100 - 120 VAC, 50-60Hz, 15A
    Input (EU) 220 - 240 VAC, 50-60Hz, 8A
