Used Industrial 3D Printers & Metal Post-Processing Systems

Stratasys F900 has the largest build chamber of any Stratasys FDM (fused deposition modeling) printer. It provides the space needed to print large parts or multiples of smaller parts in a single-build operation. F900 offers the broadest selection of polymer materials, from standard plastics to high-performance ULTEM and PEKK-based materials.

You can produce demanding functional prototypes, production parts, jigs, fixtures and factory tooling with unmatched accuracy, repeatability, and predictability.

• System Size & Weight
  • 2,772 x 1,683 x 2,027 mm (109.1 x 66.3 x 78.1 in.); 2,869 kg (6,325 lbs.)
    With Manufacturing Light Tower: 2,772 x 1,683 x 2,281 mm (109.1 x 66.3 x 89.8 in.)
• Achievable Accuracy
  • Parts are produced within an accuracy of +/- .089 mm or +/- .0015 mm per mm, whichever is greater (+/- .0035 in. or +/-.0015 in. per in., whichever is greater). Z part accuracy includes an additional tolerance of -0.000/+ slice height.
  • Note: Accuracy is geometry-dependent.
• Network Communication
  • 10/100 base T connection
  • Ethernet protocol
• Power Requirements
  • 230 VAC (three phase) 50/60Hz, 40 Amp circuit
• Additional Requirements
  • Compressed air required: 90-120 psi with a minimum flow of 20 CFM.
• Software
  • All Fortus® systems include Insight and Control Center™ job processing and management software. Compatible with GrabCAD Print and GrabCAD Print Pro for use with job reports, scheduling, and remote monitoring. U.S. government agency STIG compliance via Stratasys ProtectAM technology is powered by Red Hat® Enterprise Linux® software.
• Operating System
  • Windows 10 and newer, Windows Server 2016 and newer. Only 64-bit versions of Windows are supported.

• Fused Deposition Modeling | FDM

ETEC EnvisionOne is a powerful desktop DLP (digital light processing) 3D printer with patented cDLM (continuous digital light manufacturing) technology, enabling breakneck print speeds with little to no delay between layers. This technology is a s

With a wide range of compatible materials, a simple Envision One RP software workflow, and a precision light engineer, the EnvisionOne delivers exceptional speed, print resolution, surface finish, and part mechanical properties.

• BUILD ENVELOPE (MAX PART SIZE)
  Envision One – 180 x 101 x 175 mm
• XY RESOLUTION
  Envision One – 60 μm with patented Pixel Tuning
• Z RESOLUTION (MATERIAL DEPENDENT)
  Envision One – 50–150 μm
• LED Light Source
  • 385nm wavelength
• Footprint
  • 15.4 x 16.93 x 25.02 in. (39.1 x 43 x 63.6 cm)
• Electrical Requirements
  • 110/220 VAC 50/60 HZ 5A

• Continuous Digital Light Manufacturing | cDLM
• Digital Light Processing | DLP
  • Parts that are manufactured via cDLM are made up of entangled long-chain polymers, thus resulting in fully isotropic parts, something that cannot be achieved via the FDM process.

The Formlabs Form 3L is a large-format stereolithography (SLA) 3D printer designed to enable your product development and design teams to bring their biggest ideas to life. Powered by Formlabs’ patented Low Force Stereolitography™.

IDEAL FOR

• Full-scale rapid prototyping and product development
• Tooling and manufacturing aids
• Casting and mold patterns
• Concept modeling

SPECS

• Build Volume – 33.5 × 20 × 30 cm (13.2 × 7.9 × 11.8 in)
• Layer Thickness – 25 – 300 microns (.001 – .012 in)
• Resin Cartridges: 2 (two )
• Supports: Auto-generated light-touch support removal
• Printer Dimensions (W × D × H)
  • 90 × 96 × 104 cm | 35.4 × 37.8 × 41 in
• Internal Temperature
  • Auto-heats to 35 °C / 95 °F
• Temperature Control
  • Air-heated print chamber
• Operating Environment
  • 18 – 28°C / 64 – 82°F
• Power Requirements
  • 100–240 VAC
  • 8.5A MAX
  • 50/60HZ
  • 650W
• Laser Specifications
  • 2 Light Processing Units
  • EN 60825-1:2007 certified
  • Class 1 Laser Product
  • 405 nm wavelength
  • 250 mW power
  • 85-micron (0.0033 in) laser spot
• Connectivity
  • Wi-Fi (2.4, 5 GHz)
  • Ethernet (1000 Mbit)
  • USB 2.0

•  Powered by Low Force Stereolitography™ [Improved Stereolithography (SLA)]

• The largest size production‐grade DLP 3D‐printer in the world — 450 x 371 x 399 mm (17.7 x 14.6 x 15.7 in)
• 24/7 volume production – print more than 150L of parts per day.
• Wide material compatibility includes hard plastics, high-temperature plastics, elastomers, rubbers, and silicones. A heated vat allows users to process highly‐viscous and solid materials at room temperatures.
• Exceptional part strength and quality. Long‐chain polymer chemistry produces strong, stable, fully‐isotropic parts suitable for demanding end‐use applications.
• Smooth surface finish —Patented, pixel tuning process results in significantly less pixelation and a high‐quality surface finish, with dramatically reduced need for post‐processing.

BUILD ENVELOPE (MAX PART SIZE)
450 x 371 x 399 mm

XY RESOLUTION
75 μm with patented Pixel Tuning

Z RESOLUTION (MATERIAL DEPENDENT)
100–175 μm

• Top‐Down Digital Light Processing Array

Desktop Metal Shop System™ is the ideal solution for turnkey batch production of fully dense customer-ready parts. It is the first binder-jet metal 3D printer that can cost-effectively 3D print small end-use metal parts with unparalleled speed and productivity. Internal machine shops, job shops, and service bureaus can now manufacture complex metal parts in low-mid volumes without the overhead, labour, and complexity of traditional laser-based metal 3D printing systems. With the Shop System, you can work with familiar metals like stainless steel, tool steels, and superalloys to build one-ofs to 100s of parts per day.

• Print Direction: Uni-directional
• Print Head:
  • 70,000 nozzles (5x redundancy)
• Max. Build Rate / Speed: 700 cm³/hr
• Surface Roughness / Part Quality:
  • 4 μm Ra
  • <0.1 μm Ra with mass finishing
• Layer Thickness: 40-100 μm
• Part Tolerance: 300 μm or +/- 3.0%
• Build Volume:
  • Model: 4L – 35 x 22.2 x 5 cm (13.8 x 8.7 x 2 in.)
  • Model: 8L – 35 x 22.2 x 10 cm (13.8 x 8.7 x 3.9 in.)
  • Model: 12L – 35 x 22.2 x 15 cm (13.8 x 8.7 x 5.9 in.)
  • Model: 16L – 35 x 22.2 x 20 cm (13.8 x 8.7 x 7.9 in.)
• Chamber Environment: Air / Not heated chamber
• Materials: Bound metal rods (metal powder + polymer binder):
  • 17-4 Stainless Steel
  • 316L Stainless Steel
  • Cobalt Chrome (F75)
• Software: Fabricate® MFG
• Production Volume:
  • Pilot runs (100 -1000)
  • Mid-volume production (10,000 – 100,000)

• Metal Binder Jetting

• 17-4 PH Stainless Steel
• 316L Stainless Steel
• CoCrMo (Cobalt Chrome (F75)
• Nickel Alloy IN625 (Inconel 625)
• Nickel Alloy IN718

Advantages

• Affordable
  • Up to 10x less expensive than comparable laser-based systems
  • The only complete metal 3D printing solution that is cost-effective for rapid prototyping
• Safe & Simple
  • No lasers and powders mean the Studio System is safe for any facility
  • No third-party equipment, external ventilation, or special facilities required
• Separable Supports
  • No machining or wire EDM is required to remove support structures from parts
  • Separable supports allow the removal of support structures by hand
• Precise, High-Quality Parts
  • The precision of the Desktop Metal Studio 3D printer ensures high-quality parts with densities between 96-99%
  • Parts perform similar to wrought

• Print Head:
  • 250 μm high-resolution nozzle
  • 400 μm standard-resolution nozzle
• Max. Build Rate / Speed: 16 cm3/hr*
• Surface Roughness / Part Quality:
  • 5-15 μm Ra
  • <0.1 μm Ra with mass finishing
• Layer Thickness:
  • 50 – 150 μm, high-resolution printhead
  • 150 – 300 μm, standard resolution printhead
• Part Tolerance: ± 0.5%**
• Build Volume: 300 x 200 x 200 mm (12 x 8 x 8 in.)
• Chamber Environment: Heated, up to 70°C (158°F)
• Materials: Bound metal rods (metal powder + polymer binder):
  • 17-4 Stainless Steel
  • 316L Stainless Steel
  • H13 Tool Steel
  • 4140 Steel
  • Copper
• Software: Fabricate® Cloud (local options also available at cost)
• Production Volume: Prototyping and one-off parts (1-100)

*The average print rate (inclusive of acceleration and deceleration, printhead switches, etc.) is approximately 6 cm3/hr when printing with the “standard” print profile at 150 μm layer height.

**Tolerances on the Studio System for parts/features larger than 60mm are +/- 0.8%. Tolerances for part/features smaller than 60mm are +/- 0.5mm.

• Automotive
• Consumer Goods
• Education
• Machine Design
• Heavy Industry
• Manufacturing Tooling

• Bound Metal Deposition®

The HP 4200 MJF 3D printer is ideal for industrial prototyping and final part production. With this system, you can achieve predictable print time and parts with best-in-class isotropy.

• Effective Build Volume
  • 380 x 284 x 380 mm (15 x 11.2 x 15 in)
• Building Speed
  • Up to 4115 cm³/hr (251 in³/hr)
• Layer Thickness
  • 0.08 mm (0.003 in.)
• Included Software
  • HP SmartStream 3D Build Manager,
  • HP SmartStream 3D Command Center
• Certified Third-party Software
  • Autodesk® Netfabb® with HP Work-space, Materialise Build Processor for HP Multi Jet Fusion technology,  Siemens NX AM for HP Multi Jet Fusion technology
• Processor & Memory
  • Intel® Core™ i7 4770TE (2.3 GHz, up to 3.3 GHz)
  • 16 GB DDR3
• Dimensions (W x D x H)
  • 2210 x 1200 x 1448 mm (87 x 47 x 57 in.)
• Weight
  • 750 kg (1653 lb)

• Multi Jet Fusion | MJF

view technical specs

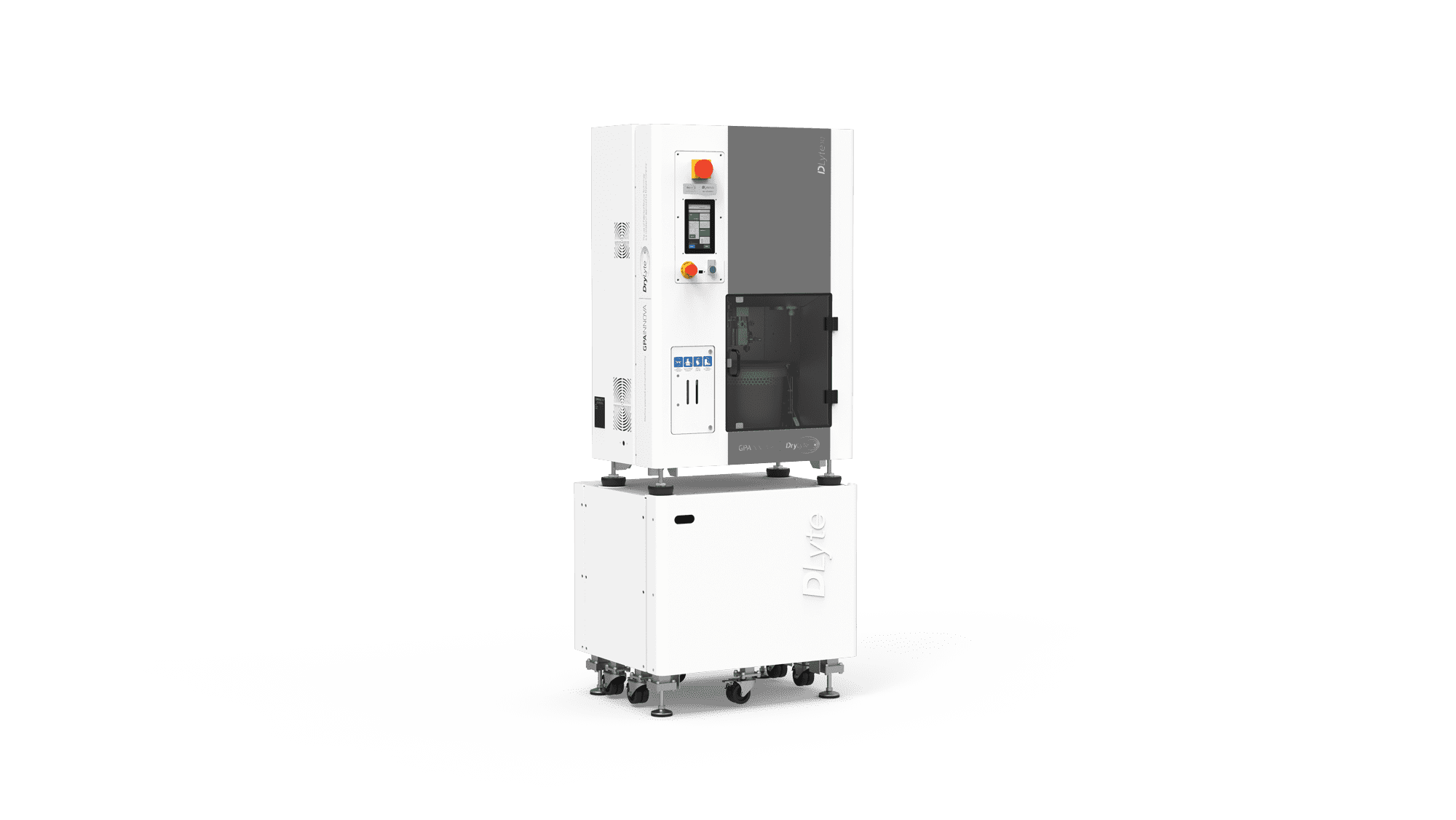

• Dry Electro-Finishing

• For treatment materials included in Steel group, Cobalt-chrome group, Copper and Nickel based alloys group with Low Frequency parameters.

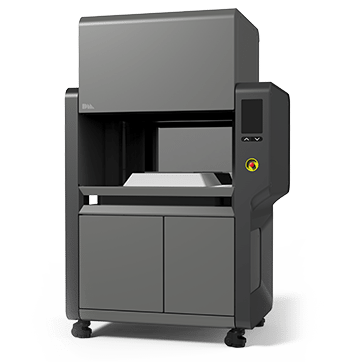

PERFORMANCE

• Atmosphere: Partial-pressure sintering (vacuum-enabled)
• Heating: SiC heating elements (4 sides)
• Max temperature: 1400 °C 2552 °F
• Average heat load: 8,100 BTU/hr
• Max heat load: 15,600 BTU/hr for 2 hours
• Thermal uniformity: ±5 °C at sintering temperatures

PHYSICAL SPECS

• External dimensions: 161.8 x 138.0 x 75.4 cm 63.7 x 54.3 x 29.7 in
• Height in open position: 216 cm 85 in
• Weight: 798 kg 1,760 lbs
• Workload envelope: 30 x 20 x 20 cm 11.8 x 7.9 x 7.9 in
• Work holding: Adjustable multi-level trays with ceramic setters (6-position)
• Retort: Stacking graphite rings
• Ventilation
  • Effluent air exhaust line (0.5 in, push-to-connect)*
  • Liquid drain line (0.5 in, push-to-connect)
• Binder management: Removable binder cold trap liner
• Pinch-point handling: Finger-safe light curtain protection
• Fail safes
  • Thermal interlocks
  • Front-mounted E-stop
  • Over-temperature protection
• Power requirements
  • 208 VAC, 60 Hz, 30 A, 3-phase dedicated circuit
  • NEMA L15-30 plug (4-wire connection)
• Onboard control : 7-inch touchscreen display

PLATFORM

• Network connectivity: Wireless and Ethernet
• Software: Fabricate ™ software
• Browser requirements: Accessible via any web browser
• Automation
  • Auto-generated temperature progiles
  • Automatic 2D nesting with part placement instructions
  • RFID-enabled gas supply monitoring (onboard canisters)
  • Live job progress tracking

• For Binder Jetting 3D Printing Technology

• Forming gas, nitrogen (material-dependent)
• External gas connection required: RFID-enabled, 900 L onboard canisters (x2)
