Creaform Go!SCAN Professional Portable 3D Scanner

Go!SCAN 3D Scanner


The easiest portable 3D Scanner. Quickly and easily capture full colour scans.



Go!SCAN 20 White Light 3D Scanner Ontario Go!SCAN 20

With increased resolution, the Go!SCAN 20 is ideal for scanning small parts with intricate details.

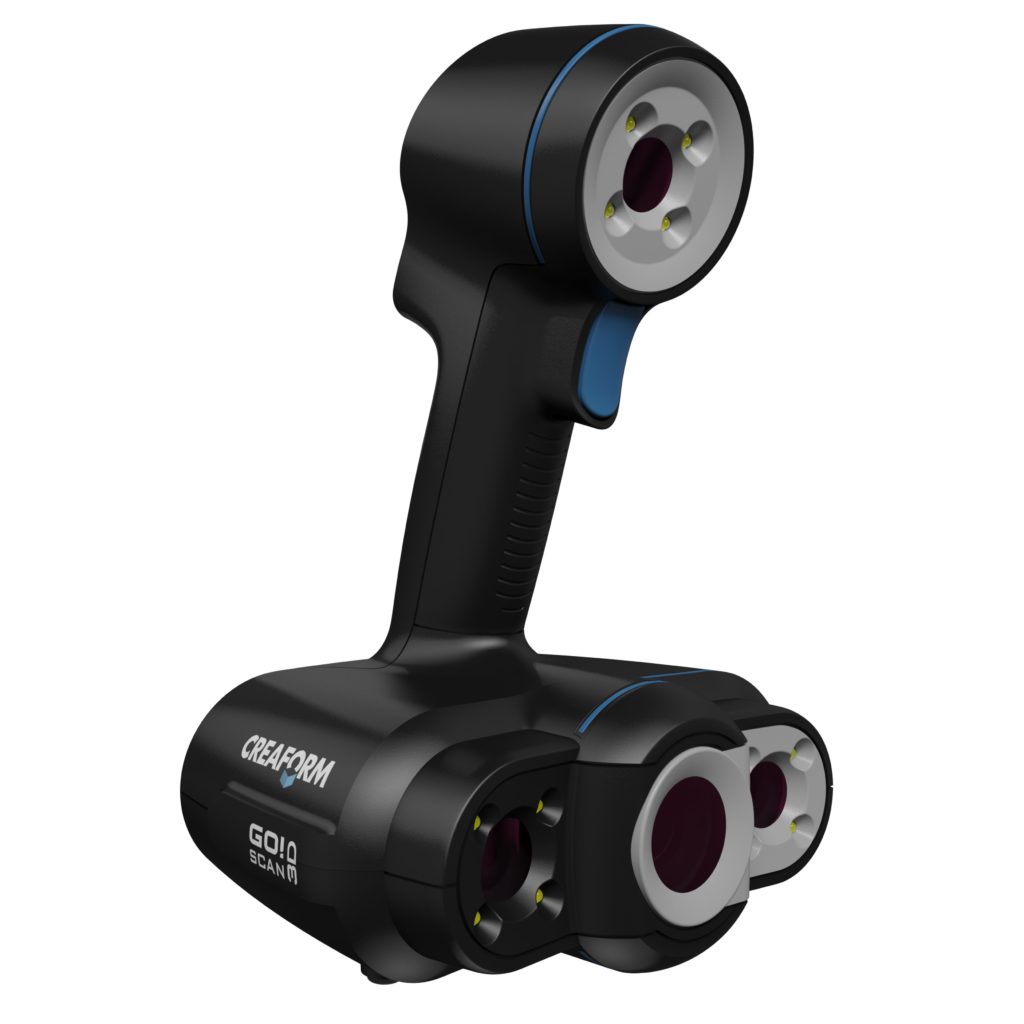

Go!SCAN 50 White Light 3D Scanner Ontario Go!SCAN 50

The larger field of view on the Go!SCAN 50 makes it ideal for scanning medium to large objects quickly and easily.



View the Go!SCAN 3D in action

The Go!SCAN 3D™ product line offers our easiest portable 3D scanning experience, providing fast and reliable measurements. With these handheld 3D scanners, you can even capture 3D data in full color.


Go!SCAN 3D Scanner Product Brochure
Creaform Go!SCAN 3D Scanner Demo Ontario
Creaform Go!SCAN 3D Scanner Specifications
Creaform Go!Scan 3D Scanner Price




  • Benefits
  • Software
  • Specifications
  • Applications
  • Get A Quote


TRUsimplicity

  • Hybrid positioning: uses the parts’ natural geometry and color.
  • Point-and-shoot: no need to prepare parts. Just go!
  • User-friendly: no experience required, up-and-running in minutes.
  • Scan in color: allows for seamless capture of high-quality geometry and colors simultaneously.
  • Real-time visualization: look at the computer screen to see what you are doing and what is left to be done.


TRUportability

  • Stand-alone device: the part is the reference, no external positioning system needed.
  • On-the-go scanning: fits into a carry-on case, so you can use it both in-house or on site.
  • Lightweight and small: weighs under 1 kg (2.2 lb.), can reach confined areas. Fits into a carry-on


Speed

  • Fast: typical objects are scanned in 5 minutes or less
  • High measurement rate: capture large amount of 3D data for faster scanning.
  • Automatic mesh output: ready-to-use files (geometry and color), right as you complete acquisition.
  • Quick workflow integration: usable scan files can be imported into RE/CAD/3D printing software without post-processing.


TRUaccuracy

  • Professionnal-grade measurements: accuracy of up to 0.1 mm (0.004 in.) and resolution of up to 0.2 mm (0.008 in.).
  • Built-in intelligence: ensures that 3D data is high-quality and accurate.
  • Optional targets: possible to use targets to compensate for an object’s lack of positioning information.
  • No rigid setup required: both the part and the scanner can be moved during scanning.





VXelements: 3D software platform

The HandySCAN 3D scanners come with VXelements, a fully integrated 3D software platform that powers our entire fleet of 3D scanning and measurement technologies. The user-friendly software thrives off a sleek and simple working platform. gathering essential elements, including real-time visualization, it creates the best scanning experience.

Upon completing the scan, an optimized file is automatically created, significantly reducing the time involved in your inspection/design process.




VXscan: Scan software module

VXscan is designed specifically for acquiring and optimizing 3D scan data. Delivering high performance for specific tasks, while still remaining user-friendly makes the software perfect for any user's level of experience.
  • User-friendly interface: VXelements was designed to simplify the whole scanning process to its essential core, through a powerful and simple process.

  • Surface optimization algorithm: avoids the creation of multiple scan layers and ensures a more accurate mesh without any post-treatment

  • Direct mesh output: an optimized mesh can be exported in all standard formats, right as you complete acquisition. No complicated alignment or point cloud processing needed

  • No limitation to the scan resolution: you simply need to input a resolution value, independent from the size of the scanned object. Resolution can be changed at any time before/after the scan

  • Real-time visualization: the user can view the 3D surface as the object is being scanned

  • Scan results enhancement: hole filling, smart decimation, boundary filters, etc.


VXmodel: Scan-to-CAD software module

This post-treatment software seamlessly integrates into VXelements, and allows finalization of 3D scan date. Whether it is for analysis or 3D printing, VXModel provides the quickest path from scan to CAD/Additive Manufacturing.


VXremote: Remote access software application

In-field effeciency is greatly improved with VXremote. Offering speedy activation and set up, it also benefits from not requiring hardware or server maintenance. It is your data, at your fingertips.









  Proto3000 Go!SCAN 20 3D Scanner
Proto3000 Go!SCAN 50 3D Scanner
  Go!SCAN 20 Go!SCAN 50
Weight 930 g (2.05 lbs.) 930 g (2.05 lbs.)
Dimensions 154 x 178 x 235 mm (6 x 7 x 9.2 in.) 150 x 171 x 251 mm (5.9 x 6.7 x 9.9 in.)
Measurement Rate 550,000 measures /sec. 550,000 measures /sec.
Scanning Area 143 x 108 mm (5.6 in x 4.3 in) 380 x 380 mm (15 in. x 15 in.)
Light Source White light (LED) White light (LED)
Positioning Methods Geometry and/or color and/or targets Geometry and/or color and/or targets
Resolution 0.200 mm (0.008 in.) 0.500 mm (0.020 in.)
Volumetric Accuracy
0.300 mm/m (0.0036 in./ft)
0.300 mm/m (0.0036 in./ft)
Stand-off Distance
380mm (15in.) 400mm (15.75in)
Depth of Field 100 mm (4 in.) 250 mm (10 in.)
Part Size Range (Recommended) 0.05 – 0.5 m (2 – 20 in.) 0.3 – 3.0 m (1 – 10 ft)
Software VXelements VXelements
Connection Standard 1 X USB 3.0 1 X USB 3.0
Output Formats .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
Compatible Software 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Dassault (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage).
Operating Humidity Range
(Non-Condensing)
10-90% 10-90%
Operating Temperature Range 15-40 °C (59-104 °F) 15-40 °C (59-104 °F)






The Go!SCAN 3D scanner product line offers a combination of speed, ease of use and accuracy. It features self-positioning technology which yields exceptional results when used towards both industrial and non industrial applications. Its innovative technology bypasses traditional preparation steps and specific setups. If you need simplified, quick, affordable and reliable 3D scanning, the Go!SCAN 3D lineup was designed with you in mind.

The Applications the Go!SCAN 3D is used for:


Reverse Engineering
Industrial Design
Tool, Die and Molding Design
Packaging Design
Handmade and Clay Model Digitizing
Small Scale Production
Quality Control
Inspection
Styling, Design and Analysis
Heritage Preservation
Arts and Architecture
Education and research
Computer Graphics and VFX
Serious Gaming and Augmented (Virtual) Reality
Healthcare
Forensics and Insurance
Fashion and Clothing Design

Technical Drawings
3D-Scan-To-CAD
Clay Model Digitizing
Prototype Iteration
Digital Models and Mock-Ups
Die and Mold Design
Handmade Model Digitizing
Custom Part Design
Packaging Design
Aftermarket Part Design
Rapid Prototyping and Manufacturing
Small Scale Production
Competition Analysis
Quality Control and Inspection
Non-Contact Inspection
Part-to-CAD Inspection
First Article Inspection
Casting Inspection
